3吨
荷重3 吨 齿轮箱: V03
规格
•单速
|
主机型号 |
杨程 |
等级 |
吊升马力 kw |
小车马力 kw |
吊升速度 mpm |
小车速度 mpm |
钢索 6*37+FC |
|||||
|
m |
ISO |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
挂数 |
直径mm |
|
|
C5A040S-*18S |
6 |
M5 |
2.2 |
|
0.25 |
|
18 |
|
18 |
|
4/1 |
8 |
|
C5A048S-*21S |
|
2.8 |
|
0.25 |
|
21 |
|
21 |
||||
|
C5B040S-*18S |
9 |
2.2 |
|
0.25 |
|
18 |
|
18 |
|
|||
|
C5B048S-*21S |
|
2.8 |
|
0.25 |
|
21 |
|
21 |
||||
|
C5A080S-*18S |
6 |
M6 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
4/2 |
8 |
|
B6A096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
|
B6B080S-*18S |
9 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
|||
|
B6B096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
|
B6C080S-*18S |
12 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
|||
|
B6C096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
|
A6A080S-*18S |
6 |
M6 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
2/1 |
8 |
|
A6A096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
|
A6B080S-*18S |
9 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
|||
|
A6B096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
|
A6C080S-*18S |
12 |
4.5 |
|
0.25 |
|
8 |
|
18 |
|
|||
|
A6C096S-*21S |
|
5.5 |
|
0.25 |
|
9.6 |
|
21 |
||||
备注:1. *代表可选配提升至ISO M6
•变频速度
|
主机型号 |
杨程 |
等级 |
吊升马力 kw |
小车马力 kw |
吊升速度 mpm |
小车速度 mpm |
钢索 6*37 + FC |
|
|
m |
ISO |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
挂数 |
直径mm |
|
|
C5A040I-*18I |
6 |
M5 |
2.2 |
0.25 |
0.4->4 >8* |
4.5->18 |
4/1 |
8 |
|
C5B040I-*18I |
9 |
|||||||
|
C5B040I-*18I |
6 |
M6 |
4.5 |
0.8->8 ->16* |
4/2 |
8 |
||
|
B6B080I-*18I |
9 |
|||||||
|
B6C080I-*18I |
12 |
|||||||
|
C5B080I-*18I |
6 |
M6 |
4.5 |
0.8->8 ->16* |
2/1 |
12 |
||
|
B6B080I-*18I |
9 |
|||||||
|
B6C080I-*18I |
12 |
|||||||
备注:1. *代表可选配提升至ISO M6
2. 速度*代表空载
尺寸图

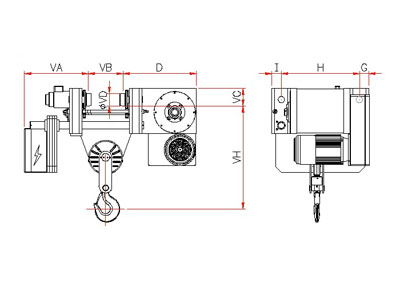

单轨低举型起重机 挂数: 2/1
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03A6A080*-L18* |
3(2.8) |
135 |
490 |
75 |
505 |
150-250 |
115 |
70 |
950 |
524 |
|
V03A6B080*-L18* |
135 |
590 |
75 |
505 |
150-250 |
115 |
70 |
950 |
524 |
|
|
V03A6A080*-L18* |
135 |
690 |
75 |
505 |
150-250 |
115 |
70 |
950 |
524 |
备注:1. 速度*代表空载
单轨低举型起重机 挂数: 4/2
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03B6A080*-L18* |
3(2.8) |
75 |
730 |
75 |
505 |
150-250 |
115 |
70 |
818 |
524 |
|
V03B6B080*-L18* |
75 |
898 |
75 |
505 |
150-250 |
115 |
70 |
818 |
524 |
|
|
V03B6C080*-L18* |
75 |
1066 |
75 |
505 |
150-250 |
115 |
70 |
818 |
524 |
备注:1. 速度*代表空载
单轨低举型起重机 挂数: 4/1
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03C5A040*-L18* |
3(2.8) |
65 |
745 |
65 |
445 |
150-250 |
100 |
70 |
750 |
380 |
|
V03C5B040*-L18* |
65 |
935 |
65 |
445 |
150-250 |
100 |
70 |
750 |
380 |
备注:1. 速度*代表空载
单轨起重机 挂数: 2/1
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03A6A080*-V18* |
3(2.8)
|
95 |
540 |
350 |
215 |
150-250 |
125 |
100 |
1360 |
360 |
|
V03A6B080*-V18* |
95 |
640 |
350 |
215 |
150-250 |
125 |
100 |
1360 |
360 |
|
|
V03A6C080*-V18* |
95 |
740 |
350 |
215 |
150-250 |
125 |
100 |
1360 |
360 |
备注:1. 速度*代表空载
单轨起重机 挂数: 4/2
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03B6A080*-V18* |
3(2.8)
|
100 |
791 |
380 |
195 |
150-250 |
100 |
70 |
1200 |
350 |
|
V03B6B080*-V18* |
100 |
991 |
380 |
195 |
150-250 |
100 |
70 |
1200 |
350 |
|
|
V03B6C080*-V18* |
100 |
1191 |
380 |
195 |
150-250 |
100 |
70 |
1200 |
350 |
备注:1. 速度*代表空载
单轨起重机 挂数: 4/1
|
主机型号 |
荷重(吨) |
G |
H |
I |
VA |
VB |
VC |
VD |
VH |
D</span> |
|
V03C5A040*-V18* |
3(2.8)
|
90 |
560 |
225 |
240 |
150-250 |
90 |
70 |
1200 |
343 |
|
V03C5B040*-V18* |
90 |
750 |
225 |
240 |
150-250 |
90 |
70 |
1200 |
343 |
备注:1. 速度*代表空载
双轨型起重机 挂数: 2/1
|
主机型号 |
荷重(吨) |
A1 |
A2 |
C1 |
C2 |
WL |
WD |
WJ |
WN |
WM |
WF |
|
V03A6A080*-W18* |
3(2.8) |
644 |
644 |
50 |
75 |
60 |
80 |
800 |
673 |
606 |
680 |
|
V03A6B080*-W18* |
644 |
644 |
50 |
75 |
60 |
80 |
800 |
673 |
606 |
680 |
|
|
V03A6C080*-W18* |
644 |
644 |
50 |
75 |
60 |
80 |
800 |
673 |
606 |
680 |
备注:1. 速度*代表空载
双轨型起重机 挂数: 4/2
|
主机型号 |
荷重(吨) |
A1 |
A2 |
C1 |
C2 |
WL |
WD |
WJ |
WN |
WM |
WF |
|
V03B6A080*-W18* |
3(2.8) |
644 |
644 |
205 |
75 |
60 |
70 |
1065 |
509 |
606 |
455 |
|
V03B6B080*-W18* |
644 |
644 |
205 |
75 |
60 |
70 |
1250 |
509 |
606 |
455 |
|
|
V03B6C080*-W18* |
644 |
644 |
205 |
75 |
60 |
70 |
1410 |
509 |
606 |
455 |
备注:1. 速度*代表空载
双轨型起重机 挂数: 4/1
|
主机型号 |
荷重(吨) |
A1 |
A2 |
C1 |
C2 |
WL |
WD |
WJ |
WN |
WM |
WF |
|
V03C5A040*-W18* |
3(2.8) |
500 |
500 |
65 |
50 |
45 |
80 |
1000 |
500 |
360 |
450 |
|
V03C5B080*-W18* |
500 |
500 |
65 |
50 |
45 |
80 |
1230 |
500 |
360 |
450 |
备注:1. 速度*代表空载
